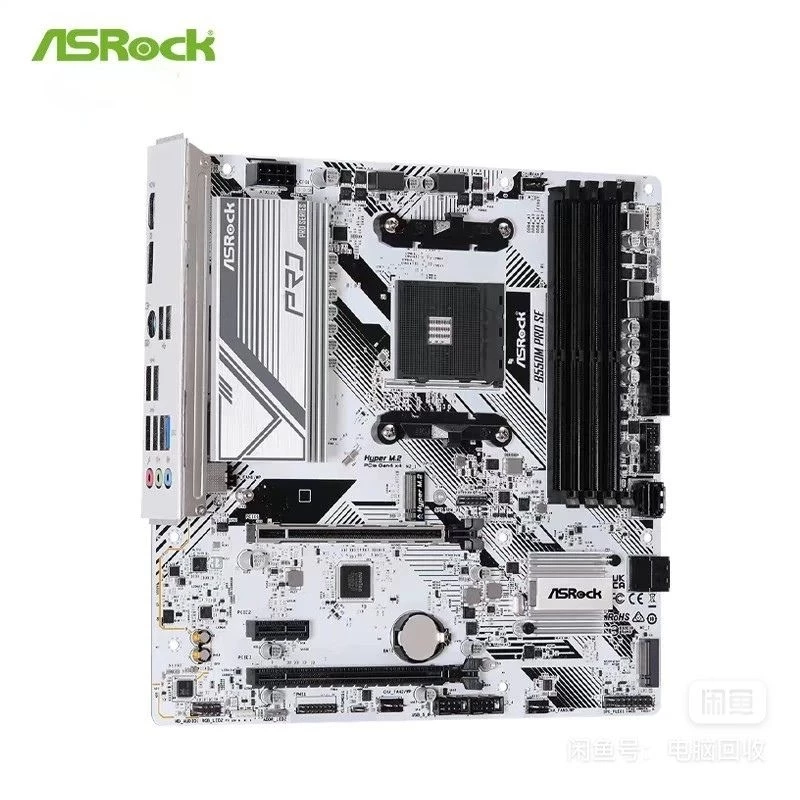

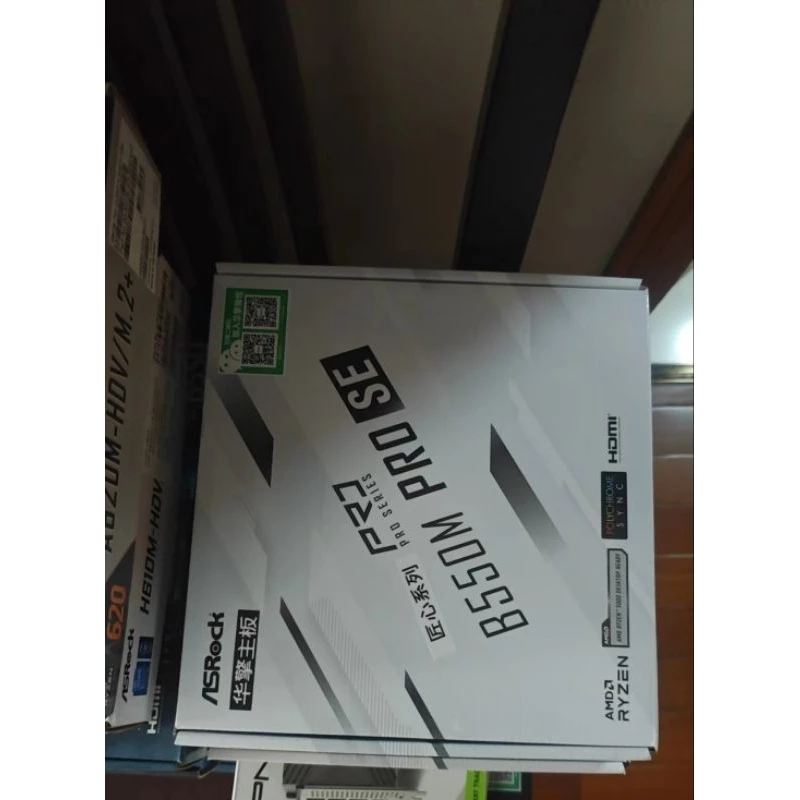

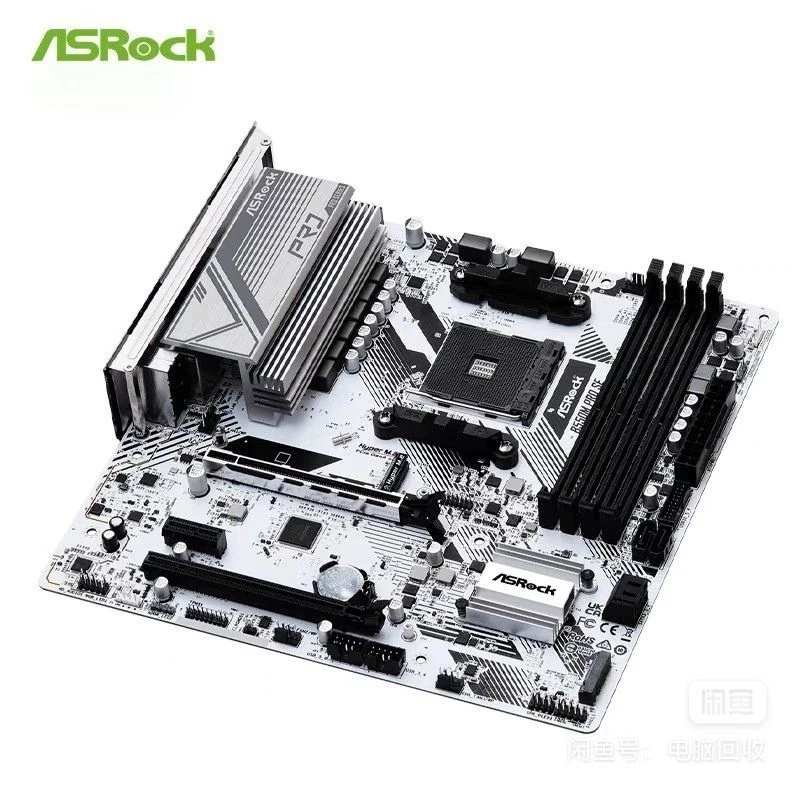

Bo mạch chủ -Mainboard Asrock B550m Pro SE new box( Socket Am4)-Hàng Nhập Khẩu

Mainboard (Bo mạch chủ)
ModelB550M Pro4
Chipset
B550CPU hỗ trợAMDChuẩn RamDDR4
Form FactorMicro ATX
Slot Ram4SocketAM4
Sync LedRGB
WIFIKhông
Ram hỗ trợ4 x DDR4 DIMM Slots ( 128GB )
Khe cắm mở rộng2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode, PCIE3: Gen3 x4 mode) AMD Ryzen series APUs
2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode, PCIE3: Gen3 x4 mode)
– 1 x PCI Express 3.0 x1 Slot
– 1 x M.2 Socket (Key E)

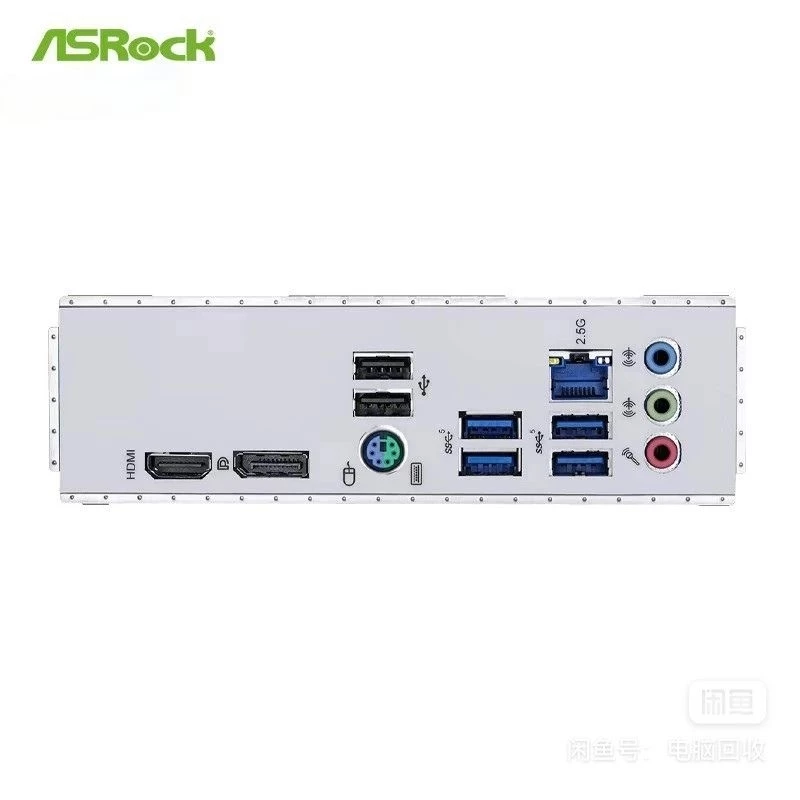

supports type 2230 WiFi/BT moduleỔ cứng hỗ trợ6 x SATA3 6.0 Gb/s 1 x Hyper M.2 Socket (M2_1) 1 x M.2 Socket (M2_2)Cổng kết nối (Back Panel)1 x COM Port Header 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)Cổng kết nối (Back Panel)Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / MicrophoneLAN / WirelessPCIE x1 Gigabit LAN 10/100/1000 Mb/sKích cỡMicro ATX Form Factor: 9.6-in x 9.6-in
24.4 cm x 24.4 cm
Bảo hành36 tháng tại shop
